Genuine Spicer - Dana 30 - Left Hand Axle Shaft Assembly - TJ / XJ / YJ / ZJ
Genuine Spicer - Dana 30 - Left Hand Axle Shaft Assembly - TJ / XJ / YJ / ZJ
Regular price
$250.00 USD
Regular price
Sale price
$250.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

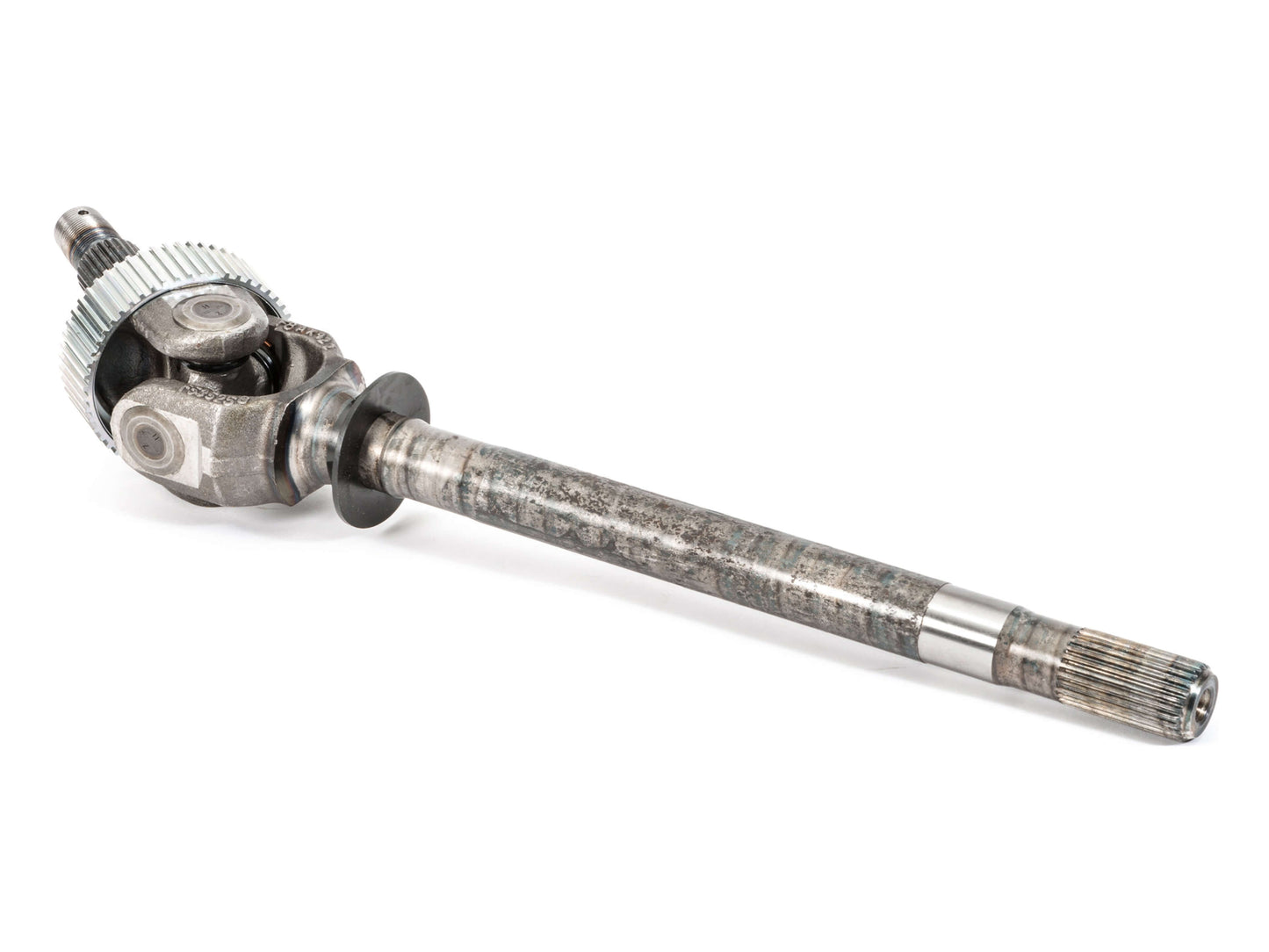

This is a complete axle shaft assembly for the Left Hand (driver or "short" side) axle shaft assembly. Comes complete with inner shaft, outer stub shaft, and axle joint. The inner shaft is 27 spline.
This assembly is a direct replacement for TJs, XJs, and YJs. This assembly is also a great upgrade for ZJs equipped with problematic CV-style front axle shafts.
Measurements
Inner shaft 16.57"
Outer shaft :6.11"
Overall length: 22.68"
| Brand | Spicer |
| Material | Steel |
| Length (IN) | 22.680 |
| Spline Count | 27 |
| ABS Sensor Ring Included | Y |
| ABS Sensor Ring Installed | Y |
| Axle Shaft Included | Y |
| Axle Type | Complete Assembly |
| Bearing Included | N |
| Full-Floating Or Semi-Floating | Semi-Floating |
| Inner Axle Included | Y |
| Outer Axle Included | Y |
| Quantity | 1 |
| Retainer Ring Included | N |
| Seal Included | Y |
| Seal Kit Included | N |
| U-Joint Included | Y |
| Wheel Bearing Included | N |
| Wheel Bolt Prep Kit Included | N |
| Wheel Nuts Included | N |
| Wheel Studs Included | N |
| Length (MM) | 576.072 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 12.9 LB |
