RockJock

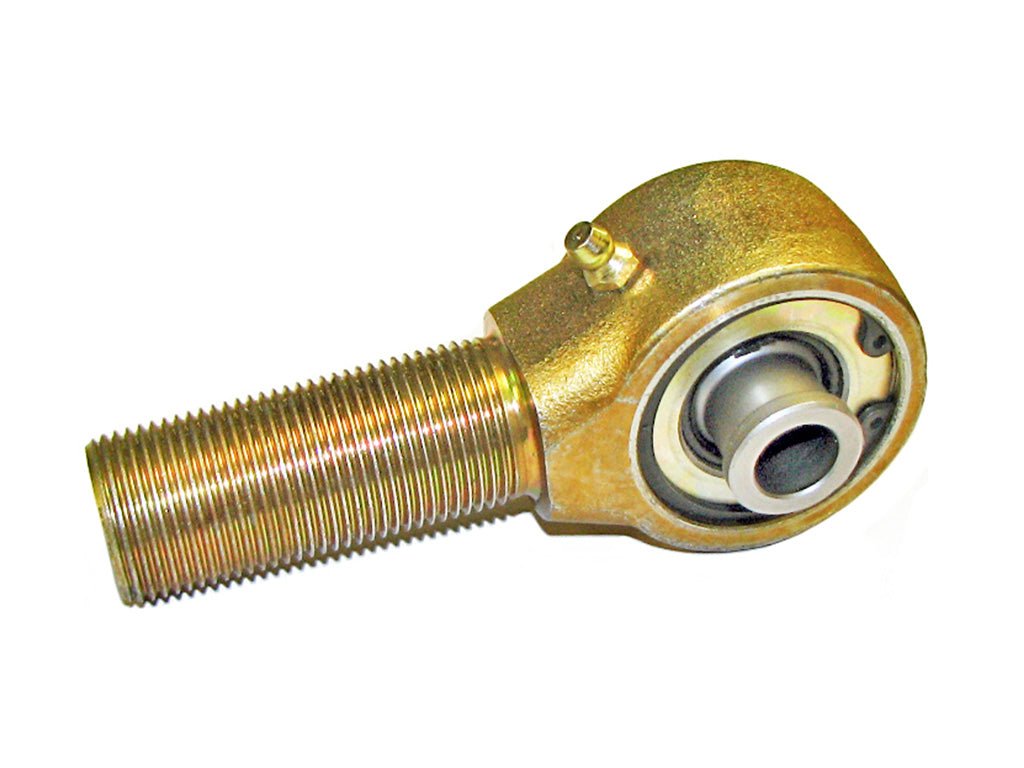

RockJock Narrow 2" Forged Johnny Joint® 1" RH Thread (2" x .500" Ball)

RockJock Narrow 2" Forged Johnny Joint® 1" RH Thread (2" x .500" Ball)

Regular price $66.00 USD
Regular price Sale price $66.00 USD
Sale Sold out
Shipping calculated at checkout.

The 2" narrow forged Johnny Joint® rod end was designed originally for use in our JK front and rear trac bars, however, it is now available separately as a replacement part or for use in any type of universal application for custom builders. This joint is a male rod end style forging that accepts Johnny Joint® internals that are unique to this narrow joint. This version features a 1/2" thru bolt hole, a 2" mounting width, 2 1/4" of 1"-14 right hand threads on the shank, and is greasable through the outer shell.



Body Type Forged Steel (Threaded)
Body Series 2 inch OD, Narrow Body
Body Width 1.2 inches
Thread Size 1 inch, 14 TPI
Thread Direction Right Hand
Shank Length 2 1/4 inch
Mount Width 2.000 inches
Hole Diameter .500 inch (1/2)
Misalignment 34° Total
Lubrication Method External zerk fitting located on joint body

MATERIALS

SHIPPING

DIMENSIONS

PRODUCT INSTRUCTIONS
