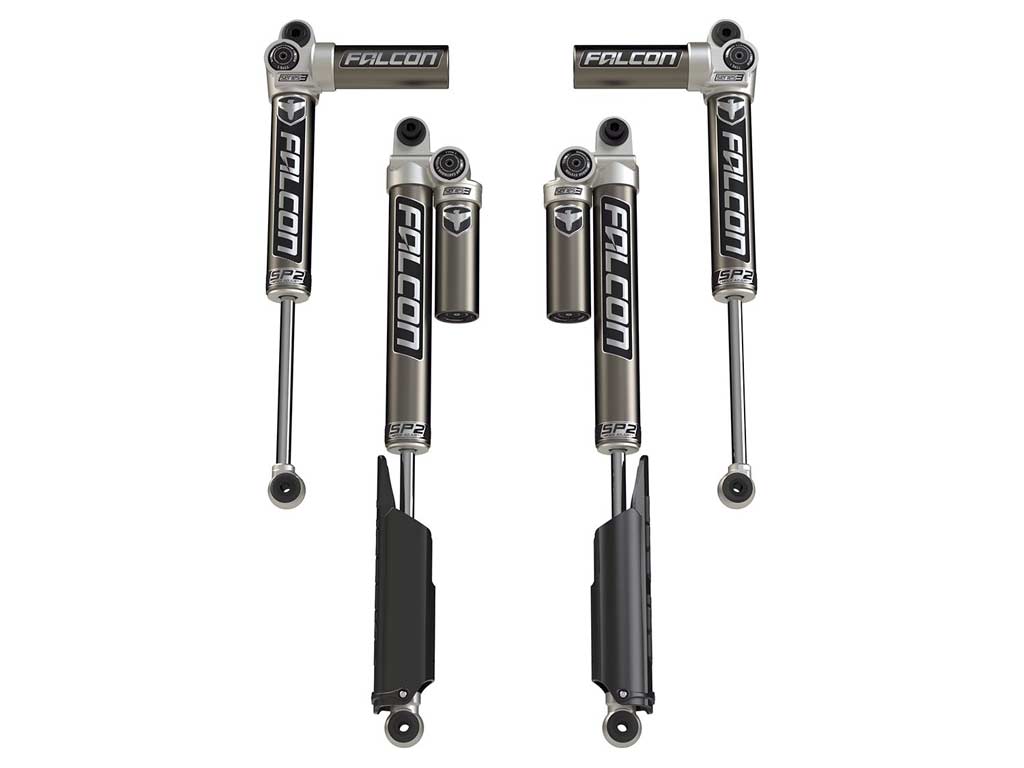

TeraFlex Falcon SP2 3.1 Piggyback Shock Kit - JL Wrangler 4-Door

Falcon SP2 3.1 Piggyback Shocks deliver increased stability, improved ride quality, and comfort on road, while the increased compression damping provides more aggressive off-road handling. SP2 3.1 Shocks have been optimized for on- and off-road driving. “High-Value Performance” is the driving force behind our vehicle-specific dampers for Jeeps, trucks, and SUVs. These Jeep-specific shock absorbers deliver increased stability, improved ride quality, and comfort for daily driven vehicles as well as race-inspired performance, handling, and stability for off-road rigs.

Falcon Performance Shocks by TeraFlex. SP2 3.1 Piggyback Shocks:

• SP2 3.1 Piggyback Shocks deliver increased stability improved ride quality and comfort on road while the increased compression damping provides more aggressive off-road handling
• Optimized tuning for on- and off-road driving
• SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings
• Ideal for daily-driven Jeeps as well as the serious enthusiast wanting a consistent controlled feel through all driving conditions JL Falcon Shocks:
• JL corner-specific shock absorber w/ race-inspired performance
• Front lower offset eyelet design provides maximum shock body to frame clearance during articulation
• Rear roost guards prevent shock shaft damage from rocks kicked up by the tires
• SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings Falcon Series 3 Piggyback Shocks:
• Piggyback design increases oil and gas capacity for reduced heat
• Flows 6x more oil than restrictive reservoir hose designs
• Eliminates common leakage issues found in banjo and swivel fittings
• Front shocks– unique horizontal piggyback reservoir increases tire clearance
• Cartridge Upgrade Kits are available separately

JL Wrangler/Unlimited:

• JL corner-specific shock absorber w/ race-inspired performance
• Front upper offset stud design provides maximum shock body to frame clearance during articulation
• Outboard mounting increases clearance for lifted vehicles w/ raised track bar brackets
• Rear shock body (all) and reservoir (piggyback) positioned on bottom eliminates shaft damage from rocks kicked up by the tires
• Rear Shock Skid Plates available separately

Features & Benefits:

• SP2 Mode Adjust:
• Choose between Soft and Performance modes during install
• Tunes both compression and rebound
• Soft mode allows a partial bypass of the main piston for a softer ride
• During aggressive driving, Soft mode retains performance tuning for optimal handling

• Soft mode recommended for rough terrain/surfaces and cold weather

• Performance mode recommended for max on- and off-road handling, stability, and control
  Falcon Jeep Shocks (all):
• Vehicle-specific shock absorbers

• Race-inspired performance for increased vehicle stability
• Improved dynamic roll control and low-speed damping

• Dramatic improvement in on-road comfort and off-road performance

• Optimized fitment for unobstructed suspension travel and articulation

• 2.3” shock body provides optimal performance (Series 2 and Series 3 Shocks)

• 2.125” shock body for high value performance (1.1 Monotube Shocks)
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components

• Smooth honed internal shock body surface for long-term performance

• 3/4” (Series 2 and Series 3 Shocks) or 1/2” (1.1 Monotube Shock) induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling

• Large shaft diameter provides a wide range of adjustment on adjustable shocks

• 1-piece energized Teflon bronze piston wear band

• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume

• VOD reduces shock bottoming at full compression or over uneven terrain

• OGS (Oil/Gas Separator) prevents cavitation

• Red Line oil for consistent performance across all temperatures

• Synthetic formula also contains special anti-wear and lubricity agents

• 1,000-hour salt spray corrosion resistance test on all hardware

• Serviceable and rebuildable (factory serviced)

• Designed, engineered, CNC machined, and assembled in-house from domestic and globally sourced components

• Patented design

• 3-year warranty

Product Fitment Notes:

• JL Wrangler Unlimited 4xe (4-door plug-in hybrid) models REQUIRE JL 4xe: Front Right Speaker Relocation Kit (# 36-07-02-100) to relocate the front right speaker in the factory Pedestrian Warning System, so it doesn’t interfere w/ the shock’s piggyback.
